Purpose: Assistance with creating an Orion SSO app in Okta.
Simple Use Case: Your firm would like to leverage Okta SSO capabilities, and you want a SAML SSO into Orion.
Scope and Outputs: This is for the out of the box Okta solution for a SAML SSO into Orion
Process Overview:
In Okta as an Admin you will elect to add an app. This will be a SAML 2.0 setup and you’ll enter the appropriate data for your firm. You’ll need to request a partner ID from Orion as well as provide us with your certificate and issuer/entity ID.
Process Steps:
- Submit a case to SME Integrations via the Orion Support App to request a Partner ID and Secret, you’ll need the Partner ID for the setup. Please allow 1-2 business days turn around.
- Submit a case to SME integrations via the Orion Support App with your certificate and issuer, or metadata to be installed in Orion. Please allow 2-4 weeks turn around.
- Set up SAML Configuration
- Single Sign- On URL : https://auth.orionadvisor.com/sso/SAMLConsumer/
- Audience URI : Firm URI (Issuer)
- Application username : Update accordingly if default does not match the Orion username as these values must match.
- Single Sign- On URL : https://auth.orionadvisor.com/sso/SAMLConsumer/
- Add Attributes ** Please note the attributes are case sensitive and must be exactly as typed below.
- authFlow = Trusted
- partnerId = Orion provided partner ID from above
- Click Advanced Settings
- Leave Response and Assertion Signature as Signed.
- Add certificate under Signature Certificate.
- Once all steps are completed you may select “Preview SAML Assertion” and select next.
- Test your newly created app. Be sure your user in Orion matches the user data you have in Okta.
Process Visualization:

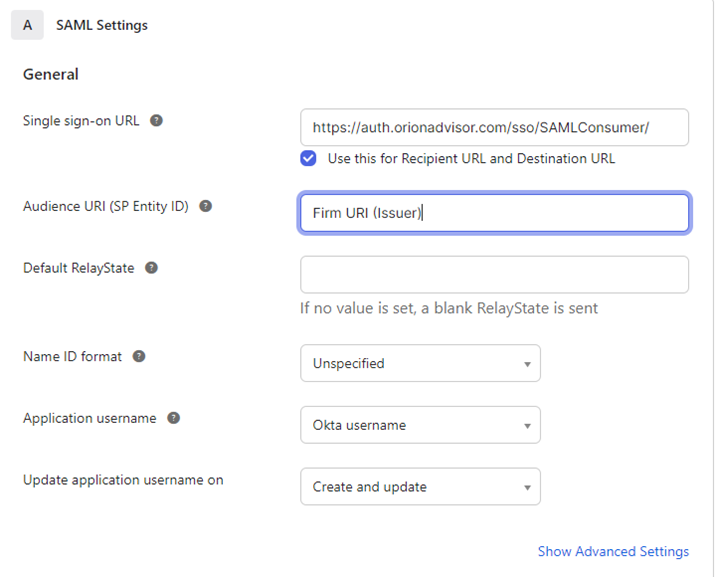

- Set up SAML Configuration
- Single Sign- On URL : https://auth.orionadvisor.com/sso/SAMLConsumer/
- Audience URI : Firm URI (Issuer)
- Single Sign- On URL : https://auth.orionadvisor.com/sso/SAMLConsumer/
Leave Default Relay State, Name ID Format, Application Username, and Update Application username on, as default values

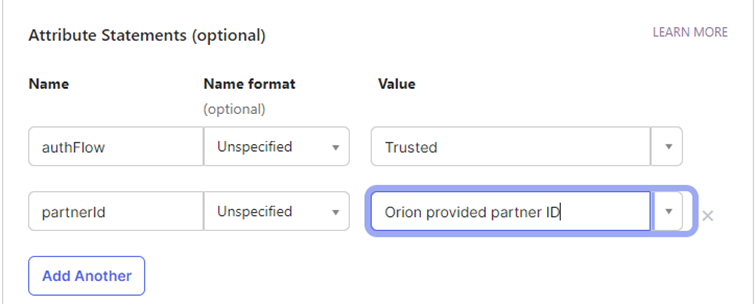

- Add Attributes ** Please note the attributes are case sensitive and must be exactly as typed below.
- authFlow = Trusted
- partnerId = Orion provided partner ID from above

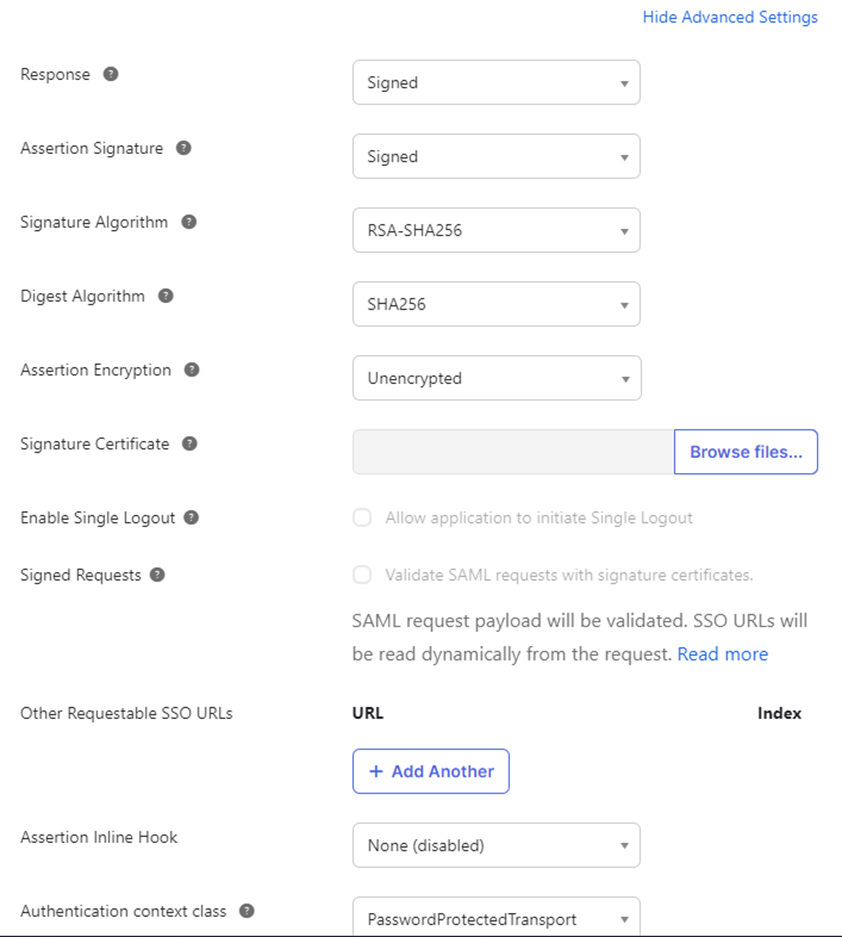

Click Advanced Settings
- Leave Response and Assertion Signature as Signed.
- Add certificate under Signature Certificate.

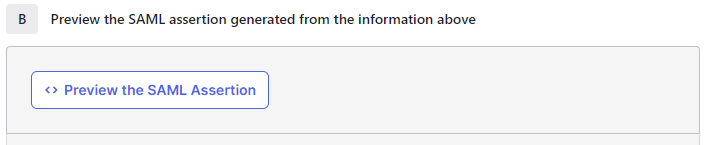

Once all steps are completed you may select “Preview SAML Assertion” and select next.
Process Tips or Controls:
- We do offer the authFlow of “TrustedPrompt” as well, however, “Trusted” is best practice.
- Be sure the authFlow are partnerId and authFlow type (above) are spelled as listed, as they are case sensitive.
